Place of Origin: | China |
Brand Name: | MBS |
Certification: | TUV |
Model Number: | LXR020 |
Name: | Steel Circular Saw Blade |
---|---|
Tooth pitch: | Laser cut or punched |
Teeth: | Sharpened |
Color: | Natural |
Function: | for plastic in general and FRP |
Feature: | body with Low noise laser cut |
Surface treatment: | Oiled or painted |
Body material: | 65Mn |

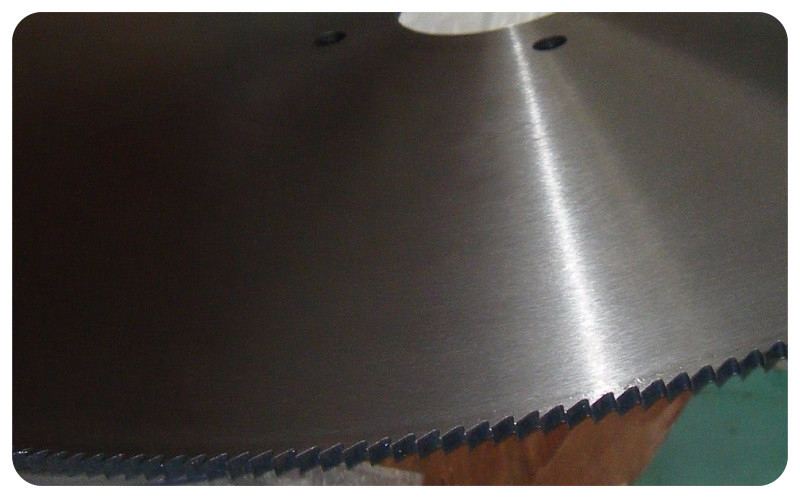

wood circular saw blade circular saw wood blade chop saw blades for wood from diameter 100mm up to 1200mm
For general, simple, precise cuts in softwood, hardwood, plywood, panels, chipboard, multi-board ect...
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.
Teeth number and steel thickness could be adjusted upon request. Hook agle could be adjusted upon request.
Size and specifications:Remark: Other special izes and specification can be tailor-made for our clients.
Diameter (mm) | Plate Thickness (mm) | Teeth Number |
100 | 1.0 | 40, 56 |
115 | 1.0 | 40, 56 |
125 | 1.0 | 56, 64, 80 |
130 | 1.0 | 56, 64, 80 |
140 | 1.0 | 56, 64, 80 |
150 | 1.0 | 56, 64, 80,90 |
156 | 1.0 | 56, 64, 80,90 |
160 | 1.0 | 56, 90, 100, 110 |
170 | 1.0 | 72, 90, 100, 110 |
180 | 1.2 | 72, 90, 100, 110 |
184 | 1.2 | 72, 90, 100, 110 |
190 | 1.2 | 72, 90, 100, 110 |
200 | 1.2 | 56, 72, 80, 100 |
200 | 1.4 | 56, 72, 80, 100 |
200 | 1.6 | 56, 72, 80, 100 |
230 | 1.4 | 36, 56, 72, 80 |
230 | 1.6 | 36, 56, 72, 80 |
230 | 1.8 | 36, 56, 72, 80 |
250 | 1.2 | 36, 56, 80, 100, 120 |
250 | 1.4 | 36, 56, 80, 100, 120 |
250 | 1.6 | 36, 56, 80, 100, 120 |
250 | 1.8 | 36, 56, 80, 100, 120 |
300 | 1.6 | 36, 56, 80, 100, 120 |
300 | 1.8 | 36, 56, 80, 100, 120 |
300 | 2.0 | 36, 56, 80, 100, 120 |
315 | 1.6 | 36, 56, 80, 100, 120 |
315 | 1.8 | 36, 56, 80, 100, 120 |
315 | 2.0 | 36, 56, 80, 100, 120 |
350 | 1.8 | 56, 80, 100, 120, 140 |
350 | 2.0 | 56, 80, 100, 120, 140 |
350 | 2.2 | 56, 80, 100, 120, 140 |
400 | 2.0 | 56, 80, 100, 120, 140 |
400 | 2.2 | 56, 80, 100, 120, 140 |
400 | 2.5 | 56, 80, 100, 120, 140 |
450 | 2.2 | 56, 80, 100, 120, 140 |
450 | 2.5 | 56, 80, 100, 120, 140 |
450 | 2.8 | 56, 80, 100, 120, 140 |
500 | 2.2 | 56, 80, 100, 120, 140 |
500 | 2.5 | 56, 80, 100, 120, 140 |
500 | 2.8 | 56, 80, 100, 120, 140 |
500 | 3.0 | 56, 80, 100, 120, 140 |
550 | 2.5 | 56, 80, 100, 120, 140 |
550 | 2.8 | 56, 80, 100, 120, 140 |
550 | 3.0 | 56, 80, 100, 120, 140 |
600 | 2.5 | 56, 80, 100, 120, 140 |
600 | 2.8 | 56, 80, 100, 120, 140 |
600 | 3.0 | 56, 80, 100, 120, 140 |
600 | 3.2 | 56, 80, 100, 120, 140 |
700 | 2.8 | 56, 80, 100, 120, 140 |
700 | 3.0 | 56, 80, 100, 120, 140 |
700 | 3.2 | 56, 80, 100, 120, 140 |
750 | 3.0 | 56, 80, 100, 120, 140 |
750 | 3.2 | 56, 80, 100, 120, 140 |
750 | 3.5 | 56, 80, 100, 120, 140 |
800 | 3.2 | 56, 80, 100, 120, 140 |
800 | 3.5 | 56, 80, 100, 120, 140 |
800 | 3.8 | 56, 80, 100, 120, 140 |
800 | 4.0 | 56, 80, 100, 120, 140 |
900 | 3.5 | 56, 80, 100, 120, 140 |
900 | 4.0 | 56, 80, 100, 120, 140 |
900 | 4.5 | 56, 80, 100, 120, 140 |
1000 | 4.0 | 56, 80, 100, 120, 140 |
1000 | 4.5 | 56, 80, 100, 120, 140 |
1000 | 5.0 | 56, 80, 100, 120, 140 |
1100 | 4.5 | 80, 100, 120, 140, 160 |
1100 | 5.0 | 80, 100, 120, 140, 160 |
1100 | 5.5 | 80, 100, 120, 140, 160 |
1200 | 5.0 | 80, 100, 120, 140, 160 |
1200 | 5.5 | 80, 100, 120, 140, 160 |
1200 | 6.0 | 80, 100, 120, 140, 160 |
1200 | 6.5 | 80, 100, 120, 140, 160 |
